132kV二回線送電鉄塔

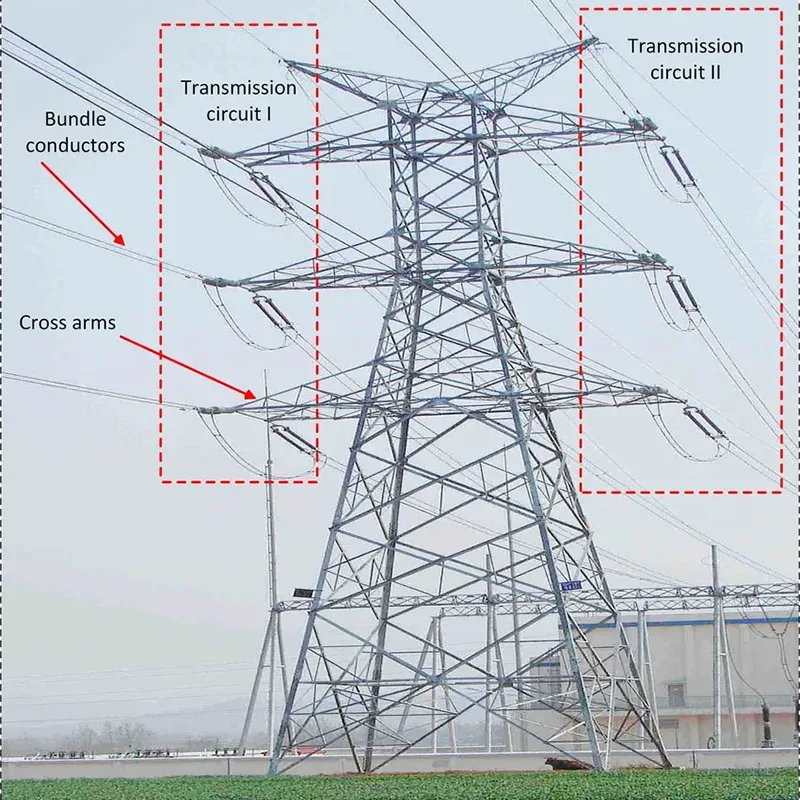

Maotong の高品質 132kV 二回線送電鉄塔は、現代の送電網拡張の高い送電容量要件を満たすように設計されています。シングルループタワーに比べ、独立した2つのループを同時に伝送できる構造となり、床面積を増やさずに伝送容量が2倍になります。

お問い合わせを送信

製品説明

As the professional manufacturer, Qingdao Maotong Power Equipment would like to provide you high quality Qingdao Maotong Power Equipment 132kV Double Circuit Transmission Tower, which adopts high strength structural steel (Q355/Q420) and combines precision CNC machining technology to ensure convenient and efficient field assembly.

Key Features & Benefits

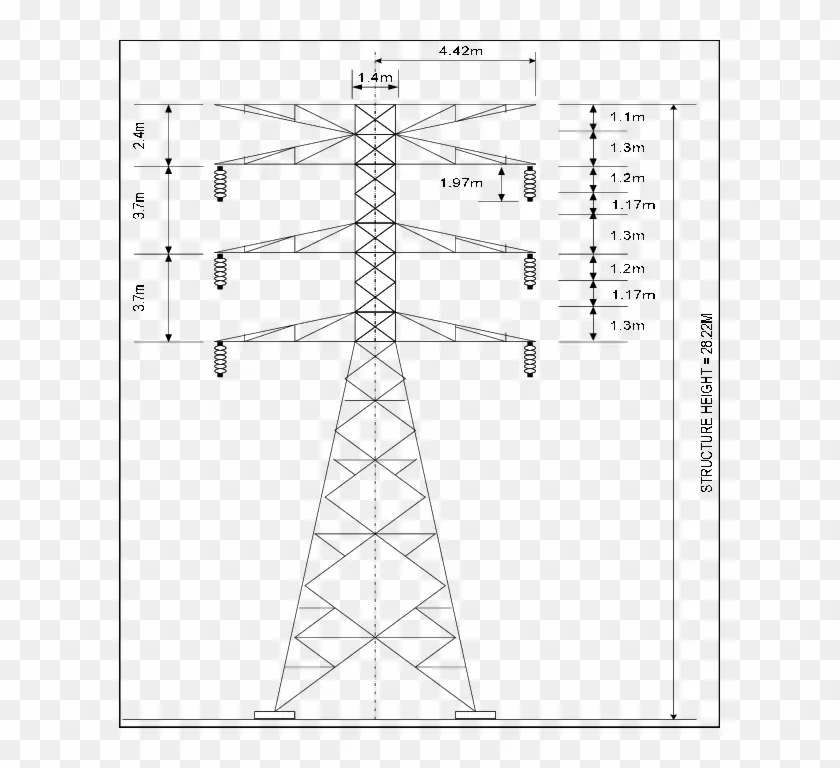

Optimized spatial layout: Vertical arrangement of conductors, significantly reducing the footprint of tower base, suitable for suburbs, mountainous areas and narrow transmission corridors and other terrain conditions.

Good corrosion resistance: All steel parts are hot dip galvanized according to ISO 1461 or ASTM A123 standards. With an average zinc coating thickness of more than 85μm, our 132kV Double Circuit Power Transmission Line Lattice Towers are guaranteed a service life of more than 50 years, even in high humidity environments.

Precision manufacturing: We use advanced CNC angle lines for cutting and stamping. This ensures hole-to-hole accuracy within ± 0.5 mm, eliminates the need for field redrilling, and shortens the project Timeline by 20%.

High Load adaptability: According to PLS-CADD design simulation, the lattice structure is designed to withstand strong wind loads (up to 160 km/h) and icing.

Get A Quote Now

Product parameters

Parameter	Specification
Product Name	132kV Double Circuit Transmission Lattice Tower
Voltage Level	66kV / 110kV / 132kV / 138kV
Tower Type	Suspension / Tension / Terminal / Angle Tower
Structure Material	High Strength Low Alloy Steel (Q345B/Q420/ASTM A572 Gr50)
Surface Treatment	Hot Dip Galvanization (Zinc Coating > 600g/m²)
Wind Speed Design	100 km/h - 180 km/h (Customizable)
Design Standard	GB/T 2694, IEC 60826, ASCE 10, ASTM
Certificates	ISO 9001, ISO 14001,ISO 45001,OHSAS 18001 etc.
Spare Parts	Foundation Bolts, Nuts & Washers, Anti-theft Devices

Get A Quote Now

Manufacturing & Quality Control

At Qingdao Maotong, quality is our top priority. Our production process strictly follows the following points:

Material Inspection: All steel raw materials have factory certificates and chemical analysis before warehousing.

Trial Assembly: Before extensive galvanization, we conduct trial assembly (preassembly) on the ground to verify the assembly of each connecting plate and bolt. This ensures a 100% pass rate at delivery.

Final Pack: The tower materials are bundled and distinguished by color codes for quick identification and classification at the installation site.

Get a Quote for Your Project

Need a customized design or pricing for 132kV towers? Send us your technical drawings or project requirements (Voltage, Wind Speed, Span). Our engineering team will provide a detailed proposal within 24 hours.
